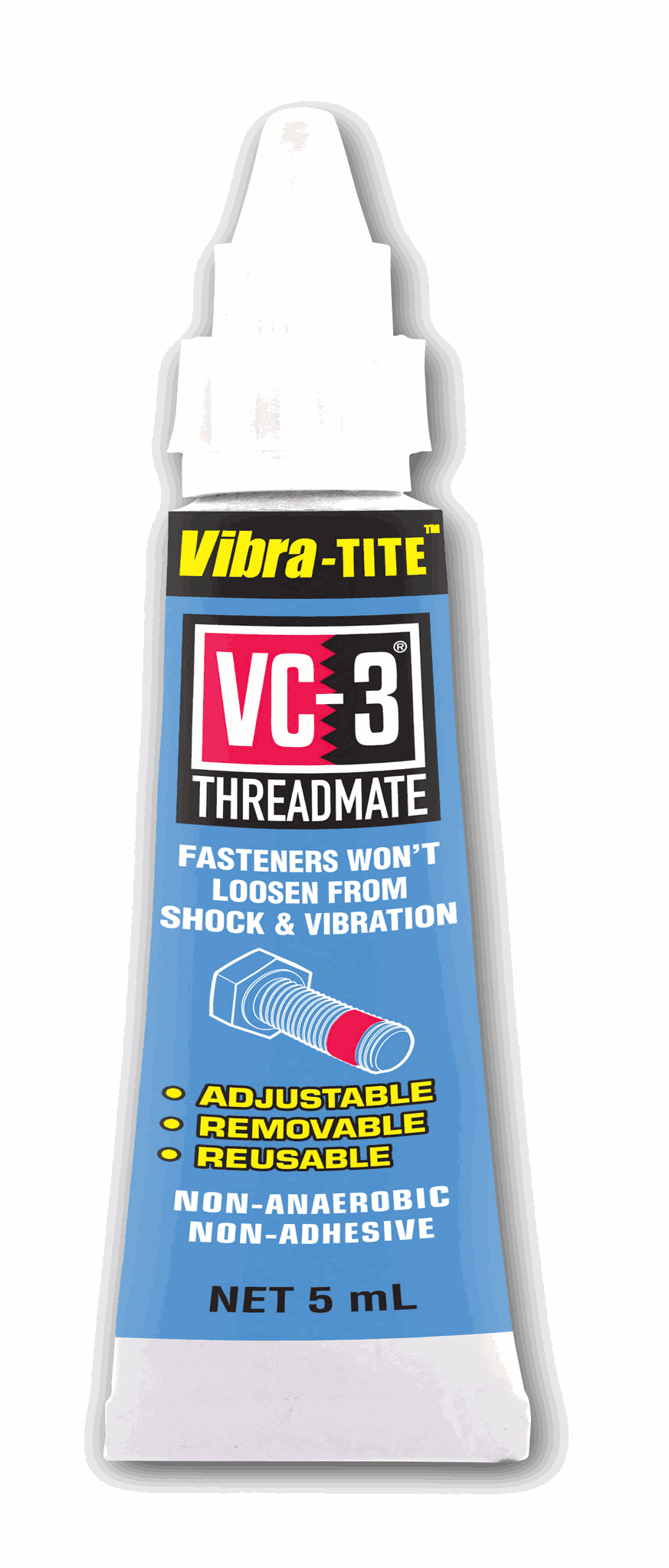

Vibra-TITE VC-3 Original is a powerful locking and sealing coating for threaded fasteners, now available in a convenient 5ml tube. It works on the principle of "friction through viscosity," using a special blend of acrylic resins to prevent fasteners from loosening—even under prolonged and extreme shock and vibration.
Vibra-TITE VC-3 Original offers several advantages for fastener maintenance and assembly:
|
Property |
Specification |
|
Resin |
Acrylic Blend |
|
Color |
Red |
|
Solvent |
Methyl Ethyl Ketone (MEK) |
|
Viscosity @ 25°C, Brookfield RVT, Spindle 3 @ 50 rpm |
150-300 cps |
|
Solids content |
34%-44% |
|
Specific gravity |
0.88 g/cc |
|
Property |
Specification |
|
Reusability |
Up to 5 times |
|
Engagement torque |
Moderate |
|
Breakaway torque |
No distinct break; slow release as material cold flows |
|
NASA SP-R-0022A: TML |
0.9% |
|
NASA SP-R-0022A: CVCM |
0.1% |
|
NASA SP-R-0022A: WVR |
0.1% |
Vibra-TITE VC-3 Original can be reused up to 5 times without losing its locking and sealing effectiveness. Its cold flow properties help preserve thread integrity across multiple applications, reducing the need for frequent part replacement.
Q: Can Vibra-TITE VC-3 be used on plastic fasteners?
A: Yes, Vibra-TITE VC-3 Original adheres to most screw types, including wood, plastic, and plating, in addition to ferrous and nonferrous metals.
Q: Is Vibra-TITE VC-3 suitable for aerospace applications?
A: Vibra-TITE VC-3 Original meets NASA SP-R-0022A outgassing standards, with a TML of 0.9%, CVCM of 0.1%, and WVR of 0.1%, making it appropriate for low-outgassing requirements.
Q: What tools are needed to adjust parts coated with Vibra-TITE VC-3?
A: Standard hand tools and steady pressure are all that's needed to adjust parts coated with Vibra-TITE VC-3 Original.
